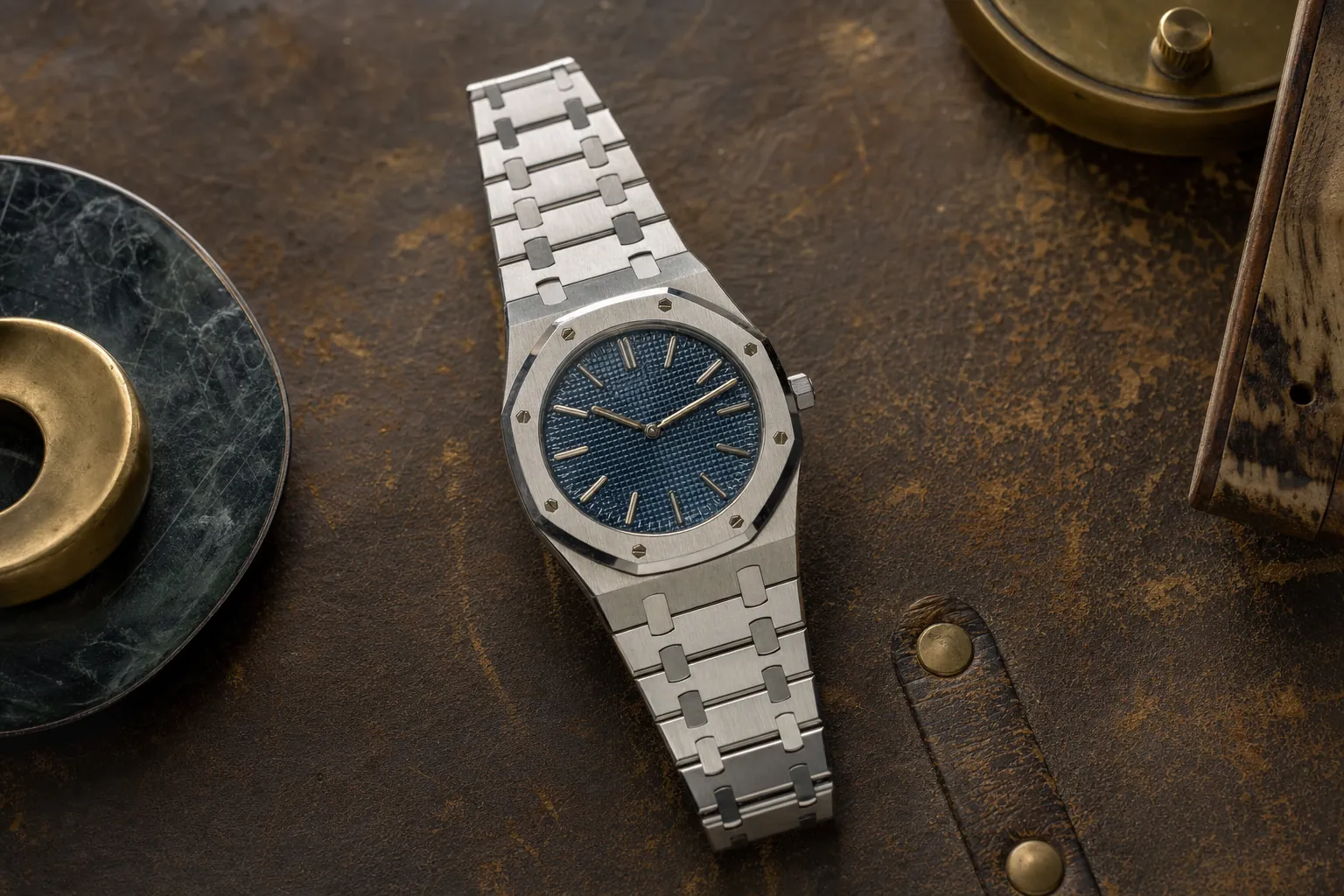

The lineage of the Royal Oak Jumbo represents one of the most continuous, focused design philosophies in modern horology. Since its introduction in 1972, the core proportions of this ultra-thin sports watch—a 39mm diameter paired with an ultra-thin profile and an integrated bracelet—have served as the benchmark for luxury steel watchmaking. Exploring the historical evolution of Audemars Piguet Royal Oak Jumbo references reveals how subtle engineering adjustments, dial variations, and mechanical developments have refined an iconic design across five decades.

The Original 1972 Reference 5402ST and Series Codes

When Gérald Genta penned the Royal Oak for Audemars Piguet ahead of the 1972 Swiss Watch Fair in Basel, the design broke entirely with mid-century dress watch conventions. Housing an ultra-thin movement within a 39mm angular steel case, the reference 5402ST introduced a high-end architectural finish to stainless steel, treating the industrial alloy with the same decorative labor traditionally reserved for precious metals.

The reference 5402 featured a two-piece monobloc case construction. Rather than using a standard screw-off caseback, the bezel, gasket, and case middle were secured together from front to back by eight hexagonal white gold bolts and rounded slotted nuts. This structure allowed Audemars Piguet to achieve a water-resistant sports watch with an overall case thickness of roughly 7mm. The dial featured a hand-turned Petite Tapisserie motif executed using a pantograph machine by Stern Frères, finished in a dark charcoal blue (Bleu Nuit, Nuage 50).

``` REFERENCE 5402 TIMELINE (1972 - Late 1970s) =========================================================== [A-Series: 1972-1974] --> AP logo at 6 o'clock (First 2,000 pieces) [B-Series: Mid-1970s] --> Transition period, AP logo moves to 12 [C-Series: Late 1970s] --> Standard production serials, logo at 12 [D-Series: End of run] --> Later production cases by Favre-Perret ```

Series Alpha Codes: From A to D

Production of the reference 5402ST is traditionally categorized by collectors through the alphabetical prefix stamped on the caseback alongside the sequential production number. These alpha designations delineate distinct phases of early manufacture:

• A-Series (1972–1974): The most renowned variant among vintage collectors, covering numbers A 1000 through roughly A 2000. These initial runs featured the applied white gold "AP" initials placed above the 6 o'clock marker. Dial printing on the A-series exhibits clean, delicate serif lettering, and early bracelets were produced by the premier bracelet manufacturer Gay Frères.
• B-Series (mid-1970s): Covering numbers B 1000 through approximately B 2000. During this run, Audemars Piguet shifted the applied "AP" logo from 6 o'clock to the upper half of the dial beneath 12 o'clock to enhance balance with the brand script. Movement components and bracelet clasps saw incremental updates during this phase.
• C-Series and D-Series (late 1970s): Later batches moved toward higher production standardization. Dials consistently maintained the 12 o'clock logo position. While early A-series cases were hand-finished with exceptional sharpness, C- and D-series cases were produced as manufacturing techniques evolved to support broader international demand.

Case Architecture and Dial Execution

The defining trait of the reference 5402 was its integrated steel bracelet. Engineered with tapering links that decreased in width from the lugs down to the folding blade clasp, it formed a seamless silhouette with the case. The combination of satin-brushed vertical surfaces and mirror-polished bevels across the octagonal bezel and case flanks set a new standard for luxury finishing. Collectors studying early examples pay close attention to case geometry; excessive polishing can diminish the crisp chamfers that define the 5402's industrial identity.

The Transition Years: References 14802 and 15002

Following the discontinuation of the reference 5402 in the early 1980s, Audemars Piguet shifted focus toward mid-sized, quartz, and complicated Royal Oak variations. For over a decade, the purist 39mm time-and-date format was absent from regular production. The 1990s, however, initiated a revival of the original dimensions through two critical bridge references.

Reference 14802: The 20th Anniversary Jubilee

In 1992, Audemars Piguet celebrated the twentieth anniversary of the Royal Oak by releasing the reference 14802. Produced as a limited jubilee edition, this model paid direct homage to the 1972 original while introducing contemporary enhancements. Most notably, the reference 14802 was the first Jumbo-proportioned model to feature a sapphire exhibition caseback, allowing the wearer to view the mechanical movement within.

Audemars Piguet produced 1,000 pieces of the 14802 across several case metals, including stainless steel, yellow gold, and platinum. Steel iterations featured classic dark blue dials or distinctive salmon-hued tapisserie dials. The gold winding rotor visible through the caseback was skeletonized and engraved with an anniversary medallion reading "Jubilee," establishing the 14802 as a distinct milestone in modern catalog history.

``` JUMBO EVOLUTION 5402 (1972) ──> 14802 (1992) ──> 15002 (1997) ──> 15202 (2000) ──> 16202 (2022) (Monobloc) (Exhibition) (Solid Back) (Millennial) (Calibre 7121) ```

Reference 15002: The Elusive Late-Nineties Purist

Introduced in 1997, the reference 15002 represents one of the rarest production Audemars Piguet Royal Oak Jumbo references in existence. Created without broad marketing fanfare, the 15002 was designed for purists who desired the original 1972 styling without modern anniversary flourishes.

The reference 15002 reverted to a solid caseback and preserved an ultra-thin case height of barely over 7mm. The dial retained the modern 12 o'clock logo placement introduced in the B-series, matched with the tight Petite Tapisserie grid. Total production of the 15002 was exceptionally small—horological records suggest fewer than 250 examples were completed, primarily in steel, before the reference was phased out to make way for the definitive modern execution.

Reference 15202: The Modern Millennial Classic

Debuting in 2000, the reference 15202 bridged the vintage era and contemporary watchmaking. It became the backbone of the Jumbo lineage for over two decades, remaining in production until the 50th anniversary year of 2022. The 15202 maintained the 39mm diameter and reintroduced the sapphire caseback as a permanent fixture, combining historical case architecture with updated production tolerances. Anyone consulting a buying guide for pre-owned luxury watches will note that the 15202 is generally divided into two distinct historical phases.

The Pre-2012 Configuration

From 2000 through 2011, the 15202 was produced with modern design choices that diverged slightly from the vintage 5402. The applied "AP" logo sat beneath the 12 o'clock marker, and the dial layout evolved over time. Early examples featured a printed date window, while later iterations shifted toward a larger, more pronounced Grande Tapisserie pattern rather than the traditional fine micro-checkering.

During this initial decade, Audemars Piguet produced the 15202 in several configurations beyond classic blue, including silver-white and anthracite dials, alongside executions in yellow gold and pink gold. While mechanically true to the original concept, these dials presented a decidedly contemporary aesthetic.

The 2012 40th Anniversary Redesign

To mark the 40th anniversary of the Royal Oak in 2012, Audemars Piguet realigned the reference 15202ST with its original 1972 roots. This redesign created what many enthusiasts consider the quintessential modern Jumbo:

1. Return of the 6 O'Clock Logo: The applied white gold AP initials returned to the lower dial register, directly above the 6 o'clock index.
2. Petite Tapisserie Reinstatement: The dial returned to the historic fine-grain micro-tapisserie pattern.
3. Color-Matched Date Disc: The date window featured a custom blue wheel matching the Bleu Nuit, Nuage 50 hue, replacing the white-backed date rings of prior versions.
4. Monochrome Finishing: The dial dispensed with decorative hour track borders, favoring minimalist baton hands and indices.

This refined configuration remained the standard bearer for the Jumbo until its retirement in late 2021. For collectors exploring the Audemars Piguet Royal Oak line, the post-2012 reference 15202 represents the ultimate synthesis of vintage design and modern manufacturing.

Calibre 2121: The Ultra-Thin Movement Era

The legendary status of the Royal Oak Jumbo across its first five decades is inextricably linked to the movement beneath the dial: Calibre 2121. The movement traces its origins back to 1967, stemming from the Jaeger-LeCoultre Calibre 920 project—a joint venture funded by Audemars Piguet, Patek Philippe, and Vacheron Constantin to create the world's thinnest full-rotor automatic movement.

Audemars Piguet designated the base, non-date caliber as the 2120 and the date-equipped variant used in the Jumbo as the Calibre 2121. Measuring an astonishing 3.05mm in thickness, Calibre 2121 was a masterpiece of mechanical architecture that enabled the Royal Oak to maintain its slender, wrist-hugging profile.

``` CALIBRE 2121 ARCHITECTURE (Profile) ┌────────────────────────────────────────────────────────┐ │ [Rotor Weight: 21k Gold Segment] │ │ [Peripheral Ring supported by 4 Ruby Rollers] │ │ [Free-Sprung Gyromax Balance - 19,800 vph / 2.75 Hz] │ │ Overall Height: 3.05 mm │ └────────────────────────────────────────────────────────┘ ```

Engineering Feats and Quirks

To achieve such extreme thinness while maintaining structural rigidity, the movement utilized an unconventional winding mechanism. Rather than mounting the oscillating weight entirely on a central ball bearing, the mass was supported by an outer peripheral beryllium ring that ran on four ruby rollers mounted to the mainplate. This distributed the mass evenly and reduced vertical height.

The balance wheel operated at a low, vintage frequency of 19,800 vibrations per hour (2.75 Hz) and utilized an adjustable-mass Gyromax-style free-sprung system. However, Calibre 2121 is also known for a specific operational quirk: it lacked a rapid quickset date mechanism. To adjust the date, the wearer had to cycle the hands past midnight, advance to 2:00 AM, swing them backward past 10:00 PM until a distinct click was felt, and then advance past midnight once again. Despite its delicate architecture, Calibre 2121 remained in continuous service for fifty years.

The Fiftieth Anniversary and Reference 16202

The year 2022 marked the 50th anniversary of the Royal Oak. Audemars Piguet used this milestone to conclude the production of Calibre 2121 and introduce the next generation of the Jumbo lineage: the reference 16202.

``` CALIBER COMPARISON ┌──────────────────────┬────────────────────┬────────────────────┐ │ Feature │ Calibre 2121 │ Calibre 7121 │ ├──────────────────────┼────────────────────┼────────────────────┤ │ Era │ 1970–2021 │ 2022–Present │ │ Thickness │ 3.05 mm │ 3.20 mm │ │ Frequency │ 19,800 vph (2.75Hz)│ 28,800 vph (4.0Hz) │ │ Power Reserve │ ~40 Hours │ ~55 Hours │ │ Date Adjustment │ 10-to-2 mechanism │ Rapid Quickset │ │ Rotor Support │ 4 Ruby Rollers │ Ball Bearings │ └──────────────────────┴────────────────────┴────────────────────┘ ```

Calibre 7121: Modern Haute Horlogerie

The transition from reference 15202 to reference 16202 was defined entirely by internal mechanics. After five years of development, Audemars Piguet debuted Calibre 7121. While slightly thicker than its predecessor at 3.2mm, it fit inside an identical 8.1mm case profile, preserving the proportions that define the Jumbo identity.

Calibre 7121 introduced crucial modern performance metrics. The frequency increased to a contemporary 28,800 vibrations per hour (4 Hz), enhancing shock resistance and chronometric stability. The power reserve was expanded from 40 hours to 55 hours via a larger barrel. Most importantly for everyday wear, the movement incorporated a true rapid quickset date mechanism integrated directly into the winding stem.

Anniversary Rotors and Material Variants

Every reference 16202 produced during the 2022 anniversary year received a dedicated oscillating weight skeletonized with the "50 Years" logo, matched to the hue of each watch's specific metal case. From 2023 onward, the 16202 transitioned to a standard production rotor with classic AP branding.

The reference 16202 launch encompassed four core executions: 16202ST: Stainless steel with the signature Bleu Nuit, Nuage 50 Petite Tapisserie dial. 16202BA: 18k yellow gold featuring a smoked yellow-gold-toned dial that deepens to black at the perimeter. 16202OR: 18k pink gold with a smoked grey Petite Tapisserie dial. 16202PT: 950 platinum with an untextured, smoked green sunburst dial.

Through the reference 16202, Audemars Piguet demonstrated that the core geometry of the 1972 original could be maintained alongside cutting-edge, modernized movement engineering.

Key Differences Between Jumbo and Standard Selfwinding Models

In the broader catalog of modern Royal Oaks, newcomers often confuse the ultra-thin Jumbo with the standard Royal Oak Selfwinding models. While both share the signature octagonal bezel and integrated bracelet, they represent entirely distinct design philosophies within the manufacture.

The most glaring visual tell is the center seconds hand. A true Royal Oak Jumbo does not feature a running central seconds hand. The display is stripped to the essential hours, minutes, and date, maintaining the visual purity of Genta's original design.

Furthermore, standard selfwinding iterations are physically thicker to accommodate heavier-duty movements featuring central winding rotors and instantaneous date wheels. While models like the 15400 and 15500 offer a more substantial, wrist-filling presence, the Jumbo remains reserved for collectors who favor traditional ultra-thin proportions and horological fidelity.

Frequently Asked Questions

### What distinguishes an A-Series reference 5402ST from later series? The A-Series reference 5402ST is distinguished by the placement of the applied white gold "AP" logo at 6 o'clock, rather than beneath the 12 o'clock position found on later production runs. Additionally, the casebacks are engraved with an "A" prefix followed by a number between 1000 and 2000. These early models also feature distinctive, hand-finished case chamfers and Gay Frères bracelets with specific clasp stamping.

### Why is the Royal Oak 5402 commonly called the 'Jumbo'? In 1972, the standard men's luxury dress watch measured between 33mm and 36mm in diameter. The reference 5402's 39mm case width was considered enormous for the era, leading the public and retailers to dub it the "Jumbo." Despite modern watches regularly exceeding 40mm, the moniker has permanently remained with the 39mm ultra-thin lineage.

### How does Calibre 7121 differ from Calibre 2121? Calibre 7121 is an entirely new movement introduced in 2022 that operates at a higher frequency of 28,800 vph compared to the 19,800 vph of Calibre 2121. It also provides an expanded power reserve of 55 hours (up from 40 hours) and features a true quickset date mechanism, eliminating the tedious 10-to-2 back-and-forth adjustment required by Calibre 2121. Furthermore, Calibre 7121 uses a traditional ball-bearing-mounted rotor rather than a peripheral ring resting on ruby rollers.

### What makes the jubilee reference 14802 historically significant? The reference 14802, introduced in 1992 for the Royal Oak's 20th anniversary, was the first Jumbo reference to incorporate a sapphire exhibition caseback. It was produced in a strict run of 1,000 pieces across stainless steel and precious metals, reviving interest in the original 39mm ultra-thin case profile after a decade dominated by smaller, quartz, and complicated Royal Oak models.
