Patek Philippe World Time 5110: 2026 Reference Guide & Checklist

Published October 21, 2026 · Last updated October 21, 2026 · By Lume Wrist Watches

The Patek Philippe World Time reference guide begins definitively with Reference 5110, the landmark model that re-established Louis Cottier's Heure Universelle system in Geneva's modern catalog in the year 2000. Powered by the ultra-thin, micro-rotor Caliber 240 HU, Reference 5110 resolves simultaneous tracking across all 24 global time zones with an intuitive 10 o'clock pusher mechanism. Encased across yellow gold (5110J), white gold (5110G), rose gold (5110R), and platinum (5110P), it remains the ultimate balanced archetype for modern Patek Philippe travel complications.

Whether you are adding to an existing portfolio or beginning your journey via our Patek Philippe Collector's Guide: Investing in Horological Excellence, Reference 5110 represents one of the most mechanically significant yet approachable modern neo-vintage complications produced by the manufacture. Below, our senior editorial team delivers the definitive reference deep-dive, covering exact specifications, execution variants, on-wrist dynamics, and market pricing for collectors today.

---

The Reference at a Glance: Production Years, Case, Movement, Dial Variants

Introduced at the dawn of the millennium in 2000, Reference 5110 ran until 2006, when it was succeeded by the larger 39.5mm Reference 5130. The short six-year production cycle makes the 5110 particularly compelling to seasoned purists who prize classical proportions.

At its core, the 5110 solved a fundamental horological challenge: seamless timezone adjustment without arresting the seconds or requiring two hands on a crown. While Louis Cottier invented the multi-zone ring layout in the 1930s—immortalized in historic references like the 1415 and the two-crown 2523—Reference 5110 integrated modern gearing patented under Swiss patent CH 693 191. Pressing the polished pusher at 10 o'clock advances the city disc, the 24-hour disc, and the local hour hand in one-hour increments simultaneously, leaving the minute wheel completely uninterrupted.

Key design attributes across its production include:

• Case Profile: A compact 37mm diameter Calatrava-style stepped case with curved, sloping lugs that sit flush against the wrist bone.
• Central Guilloché: An intricate hand-guilloché basketweave dial center (guilloché main), executed in subtle silvery opaline for gold variants and a distinct pale blue-gray for the platinum variant.
• The Caliber 240 HU: A 3.88mm ultra-thin base caliber driven by an off-center 22k gold micro-rotor recessed into the bridge work.
• Four Precious Metal Alloys: Manufactured strictly in 18k yellow gold (5110J), 18k white gold (5110G), 18k rose gold (5110R), and 950 platinum (5110P).

Unlike traditional dual-time executions explored in our Patek Philippe Travel Time Models: A Collector's Review, the Heure Universelle displays global time synoptically: you see the exact hour across all 24 standard reference cities at a single glance.

---

Full Specification Table

Reference 5110 stands as an engineering feat of micro-mechanics. The integration of the Cottier world time complication module directly above the Caliber 240 base maintained an overall cased thickness of just under 10mm.

Every 5110 was produced well before the 2009 transition from the independent Geneva Seal to the proprietary manufacture hallmark. To understand the finish standards on these bridges, review our analysis of the Patek Philippe Seal vs. Geneva Seal: A Collector's Guide to Quality Marks.

---

Production Timeline and Dial/Bezel Variations

Patek Philippe launched Reference 5110 in the spring of 2000 to celebrate the new millennium, initially issuing the three core gold metals:

### 1. Reference 5110J (18k Yellow Gold) The archetypal dress watch configuration. It features a bright 18k yellow gold case paired with applied yellow gold faceted baton indices, matching hands, and an opaline silver basketweave center. It was typically delivered on a matte chocolate-brown hand-stitched alligator strap with a matching yellow gold Calatrava cross deployant clasp.

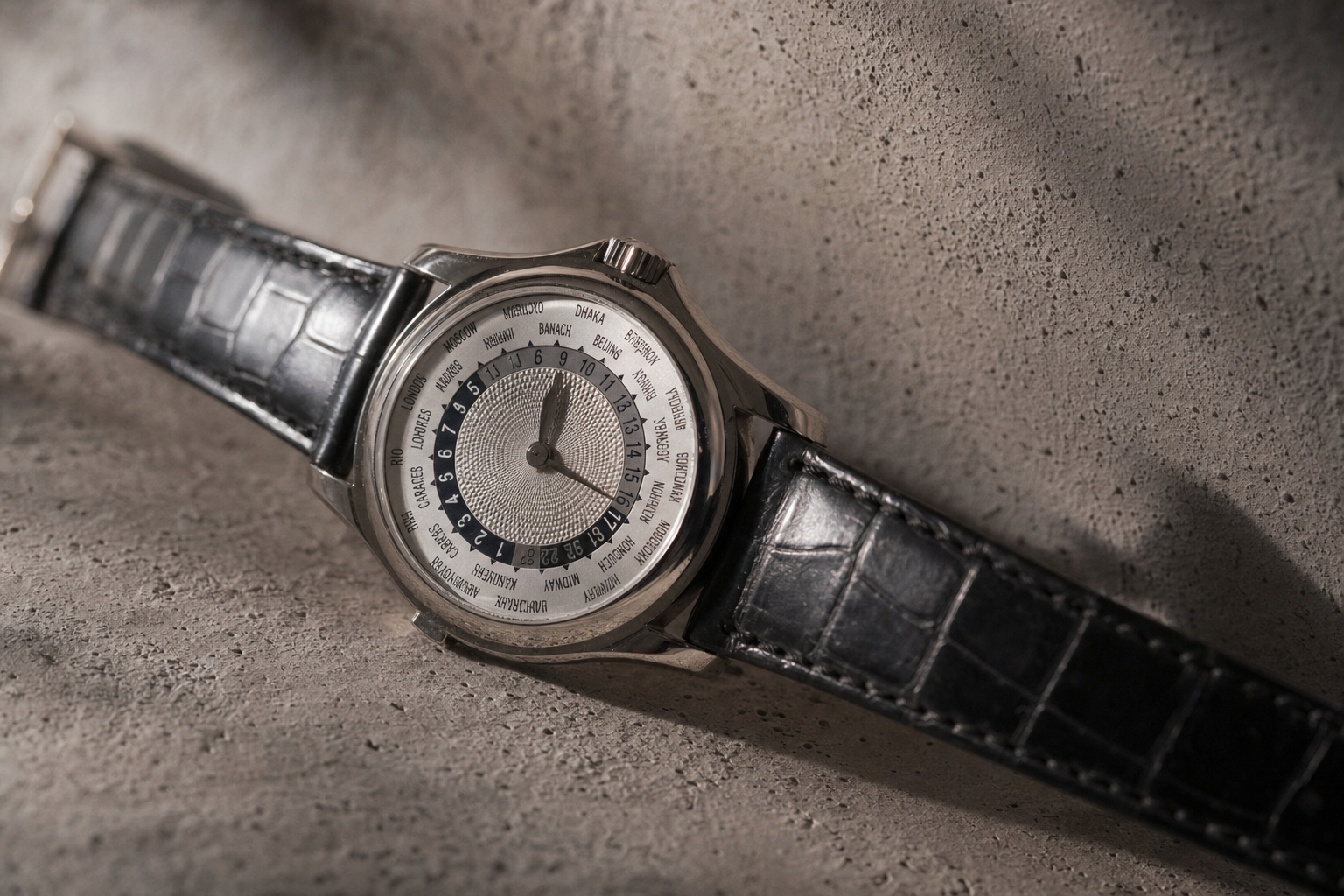

### 2. Reference 5110G (18k White Gold) Understated and monochromatic, the 5110G pairs an 18k white gold case with blackened or rhodiumed white gold indices and hands. The city ring exhibits deep black typography over silvery-white segments for day hours (7 AM to 6 PM) and dark slate segments for night hours (7 PM to 6 AM). Collectors sourcing luxury watches in New York often seek the 5110G for its versatility under tailored business attire.

### 3. Reference 5110R (18k Rose Gold) Produced in lower quantities than the 5110J and 5110G, the 5110R showcases warm 5N rose gold. The dial retains the silvery opaline center, but the hour indexes and lozenge hands are rendered in warm rose gold. Its contrast against the dark night half of the 24-hour disc is remarkably sharp.

### 4. Reference 5110P (950 Platinum) Introduced roughly one year after the gold variants, the 5110P remains the crown jewel of the standard production run. Patek Philippe gave this reference a subtle, slate-leaning ice-blue central guilloché dial, an unmistakable signature for platinum modern references. In accordance with manufacture tradition, a flawless Top Wesselton brilliant-cut diamond is set discreetly into the case flank at 6 o'clock between the lugs.

``` Reference 5110 Production & Lineage Sequence: [1930s-1960s: Louis Cottier Era (Ref. 1415, 2523)] │ [2000: Ref. 5110 Launched (37mm, Cal. 240 HU, Geneva Seal)] │ [2006: Ref. 5130 Transition (39.5mm, "Ring" Hour Hand)] │ [2016: Ref. 5230 Transition (38.5mm, Winglet Lugs, Geometric Guilloché)] ```

### Special and Regional Editions While the vast majority of 5110s carry the 24 standard global cities, Patek Philippe crafted ultra-rare commemorative pieces for select retail partners and markets. The most notable is the 5110P-014 "Doha" edition, featuring "Doha" highlighted in red text on the city ring rather than Riyadh or Moscow, along with custom city disc variants created for discerning VIP patrons. If you are comparing complications within the brand's golden era, models like the Patek Philippe Patek Philippe Complications 5015P Platinum White Dial and the tonneau-cased Patek Philippe Patek Philippe Gondolo 5135G Annual Calendar Grey Dial 18k White Gold illustrate the maison's unrivaled mastery across creative calendar and astronomical displays during this exact production window.

---

Wearing Experience and Sizing on the Wrist

On the wrist, the Patek Philippe 5110 provides an experience that modern 40mm+ sports watches simply cannot replicate. At 37mm in diameter and under 10mm tall, it slides under a bespoke shirt cuff without hesitation.

### Ergonomics and Proportions The lug-to-lug span is a modest 46mm. Because the lugs curve downward sharply to track the curvature of the wrist bone, the watch wears remarkably planted. Owners with wrist circumferences from 6.25 inches to 7.5 inches will find the proportions balanced. The crown guard shoulders integrate smoothly into the right side of the case, counterbalancing the rectangular pusher positioned at 10 o'clock.

### Legibility Across Time Zones Reading the 5110 quickly becomes second nature: 1. Local Time: Read the central hour and minute hands against the applied markers. 2. Global Time: Identify your target city on the outer ring. Look straight down to the concentric 24-hour disc directly adjacent to that city. The corresponding number indicates the current hour in that zone. 3. Day/Night Discrimination: The 24-hour ring is split cleanly into a bright half featuring sun motifs for daytime and a dark half featuring a moon symbol for midnight.

For those weighing formal wear vs. everyday travel usability, exploring Patek Philippe Calatrava Models Every Collector Should Know will highlight how the 5110 retains the DNA of pure Calatrava dress lines while delivering global functionality.

---

Market Pricing and Which Variants Command a Premium

Unlike hyper-speculative steel sports icons, the Patek Philippe World Time market has maintained healthy, value-driven stability. Collectors tracking secondary market values in our Luxury Watch Investment & Market Guide: Navigating 2026 recognize the 5110 as a blue-chip entry point into high complications.

All pricing figures below represent approximate secondary market observations as of 2026 and are subject to fluctuation based on provenance, complete box and paperwork, and unpolished condition:

• 5110J (Yellow Gold): Typically observed between $28,000 and $34,000. The yellow gold variant represents the highest production volume and the most accessible entry into the reference family.
• 5110G (White Gold): Typically trades between $32,000 and $38,000. White metal references command a consistent premium due to contemporary styling preferences among collectors sourcing luxury watches in California.
• 5110R (Rose Gold): Ranges approximately from $35,000 to $42,000. Scarcity on the open market pushes the R reference above its white and yellow gold siblings.
• 5110P (Platinum): Commands between $48,000 and $60,000, with pristine, complete-set "double-sealed" or unpolished collector-grade examples commanding higher premiums.

### Factors Influencing Secondary Value 1. Certificate of Origin: The presence of the original punched or printed Patek Philippe Certificate of Origin carries a 15% to 20% value delta on the secondary market. 2. Case Caseback Integrity: The 5110 was delivered with a sapphire exhibition caseback. Retaining crisp serial engravings and deep hallmark impressions on the back of the lugs is critical. 3. Dial Preservation: Untouched guilloché centers free from oxidation or varnish hazing command top tier placement among serious collectors.

If you hold a well-preserved piece and wish to reallocate capital into other grand complications, you can sell your watch to us for immediate, transparent valuation.

---

Authentication Checklist Specific to This Reference

Counterfeiting techniques have evolved, and high-end franken-watches occasionally surface. When inspecting a prospective Patek Philippe Reference 5110, use this rigorous verification protocol established by our in-house team independent authentication specialists.

### 1. Movement Architecture & Micro-Rotor Mechanics Check the Caliber: Inspect the movement through the sapphire caseback. The Caliber 240 HU must feature a solid 22k gold off-center micro-rotor stamped with the Calatrava cross. Finish Standards: Authentic bridges will feature circular Côtes de Genève, hand-beveled (anglage) edges, and crisp, gold-infilled engraving. You can read more about movement finishing techniques in our review of Patek Philippe Movements: In-House Calibers & Horological Innovations. The Geneva Seal: Every 5110 movement must display the Poinçon de Genève* hallmark engraved on the bridge. The modern double-P Patek Philippe Seal was not adopted until years after the 5110 ceased production.

### 2. Physical Hallmarks and Precious Metal Integrity Precious Metal Hallmarks: Inspect the underside of the lugs. There should be clear Swiss precious metal hallmarks (St. Bernard dog head) along with the common control mark and purity stamps (750 for 18k gold; 950 for platinum). The 6 O'Clock Diamond: On the 5110P, verify that the diamond set into the lower case flank at 6 o'clock is flush, perfectly centered, and cleanly set in platinum. For technical details on assay testing, see our guide on Testing Precious Metal Weight & Hallmarks in Watches.

### 3. Dial Printing, Typography, and City Alignment City Disc Font: Examine the typography of the 24 reference cities under 10x magnification. The serif and sans-serif typefaces must be razor-sharp with no paint pooling or bleeding. Pusher Indexing: When the 10 o'clock pusher is depressed, the hour hand must advance exactly one hour while the city disc and 24-hour disc advance in perfect synchronicity. The city at 12 o'clock must align with dead-center precision against the red noon marker or central 12 o'clock hash.

### 4. Deployant Clasp Construction * Reference 5110 came fitted to an 18k gold or 950 platinum fold-over Calatrava cross deployant clasp. The filigree cross arms must show crisp laser or stamping lines, free from uneven softening caused by overzealous polishing.

---

Frequently Asked Questions

### How does the Patek Philippe 5110 differ from the 5130 and 5230? The 5110 measures 37mm in diameter and features a classical basketweave dial with lozenge hands. The subsequent Reference 5130 increased to 39.5mm and introduced an open "ring" hour hand inspired by vintage references, while the Reference 5230 shifted to 38.5mm with angular winglet lugs and geometric guilloché. Most purists prefer the 5110 for its restrained, historically accurate Calatrava case dimensions.

### Can you adjust the time backward on a Patek Philippe 5110? You can adjust the minute hand forward or backward via the winding crown at 3 o'clock without damaging the complication. However, timezone jumps via the 10 o'clock pusher operate strictly forward. If you travel eastward, press the pusher sequentially until your new home timezone arrives at the 12 o'clock position.

### Is the Patek Philippe 5110 considered a Grand Complication? Horologically, Patek Philippe categorizes the Heure Universelle as a Complication rather than a Grand Complication. Grand Complications are traditionally reserved for perpetual calendars, split-second chronographs, and minute repeaters, which we detail in our guide to Patek Philippe Grand Complications: Minute Repeaters & Tourbillons Explained. However, due to its historical importance, the 5110 commands equivalent prestige among collectors.

### Did Patek Philippe produce a stainless steel Reference 5110? No, Patek Philippe never offered Reference 5110 in stainless steel as a standard production piece. Production was strictly limited to yellow gold, white gold, rose gold, and platinum. Any claimed steel 5110 on the market is either an altered aftermarket case or a counterfeit.

### What should I do if the city disc does not align with the 12 o'clock marker? Misalignment indicates either wear in the jumper springs of the complication module or improper reassembly during an unauthorized service. If the city ring stops between detents when actuating the pusher, the mechanism requires immediate attention by a qualified master watchmaker familiar with caliber 240 HU tolerances.

---

Contact Lume Wrist Watches

Whether you are acquiring your first world timer, evaluating luxury watches in Florida, or curating a multi-piece family collection, our specialists offer unbiased guidance and private sourcing.

• Email: sales@lumewrist.com
• Phone: +1 (332) 285-2190
• Office: 18 East 48th Street, Suite 1503, New York, NY 10017
• Hours: Monday – Friday: 9:00 AM – 7:00 PM ET · Closed Saturday & Sunday

Connect with our team directly through our contact page, schedule a dedicated appointment, or explore our full selection across our shop.

---

Final Thoughts

The Patek Philippe Reference 5110 is widely recognized as one of the most significant releases of the modern mechanical renaissance. It bridged the historical genius of Louis Cottier with reliable modern manufacturing, creating an elegant, wearable world timer that has stood the test of time.

Whether you select the warm traditionalism of the yellow gold 5110J, the low-key charm of the white gold 5110G, or the elusive blue dial of the platinum 5110P, this reference represents high horology in its purest form. If you are also interested in feminine complications, consider exploring exceptional pieces such as the Patek Philippe Patek Philippe Complications Annual Calendar Blue-Gray Dial, or browse our broader inventory of Patek Philippe at Lume Wrist Watches and explore all featured maisons in our authenticated collection today.
